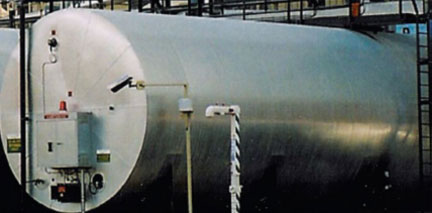

BITUMEN STORAGE TANK
Esco manufactures a wide range of bitumen storage tanks suitable for storing
Bitumen/CRMB
These are manufactured from carbon steel plates conforming to BIS 2062.
Heating can be done with Thermic fluid/Steam (Indirectly heated) or
Indirectly heated tanks are equipped with heating coils for circulation of Thermic Fluid/Steam.
by means of burners(Directly Fired)
Direct fired tanks come with oil fired burners complete with suitable control panel.
All tanks have manhole/ mechanical level indicator.
CRMB tanks are fitted with Agitator and Geared motor.
Insulation is done with Rockwool followed by GI/Aluminium/ PPGI cladding.
Saddle supports are provided for easy installation
TECHNICAL SPECIFICATIONS
A. Thermic Fluid Heated Bitumen Storage Tank
| Parameters | Unit | EBT-10 | EBT-20 | EBT-30 | EBT 40 | EBT-50 |
|---|---|---|---|---|---|---|
| Storage Volume | KL | 10 | 20 | 30 | 40 | 50 |
| Storage Temperature | Deg C | 120-150 | 120-150 | 120-150 | 120-150 | 120-150 |
| Tank Orientation | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Tank Diameter | mm | 1800 | 2000 | 2300 | 2500 | 2700 |
| Tank Diameter | mm | 4000 | 6400 | 7200 | 8150 | 9000 |
| Insulation | mm | 50 | 50 | 50 | 50 | 50 |
| Cladding GI | mm | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Type of Support | Saddle | Saddle | Saddle | Saddle | Saddle | Saddle |
| Level Indication | Mechanical Level Gauge |
Optional Extras
Turbine type agitator
Ultrasonic Level Sensor
B. Direct Fired Bitumen Storage Tank
| Parameters | Unit | EDF-10 | EDF-20 | EDF-30 | EDF 40 | EDF-50 |
|---|---|---|---|---|---|---|
| Storage Volume | KL | 10 | 20 | 30 | 40 | 50 |
| Storage Temperature | Deg C | 170-220 | 170-220 | 170-220 | 170-220 | 170-220 |
| Tank Orientation | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Tank Diameter | mm | 1800 | 2000 | 2300 | 2500 | 2700 |
| Tank Diameter | mm | 4000 | 6400 | 7200 | 8150 | 9000 |
| Insulation | mm | 50 | 50 | 50 | 50 | 50 |
| Cladding GI | mm | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Type of Support | Saddle | Saddle | Saddle | Saddle | Saddle | Saddle |
| Level Indication | Mechanical Level Gauge | |||||
| No. of Burners | 1 | 1 | 1 | 1 | 1 | 1 |
| Agitator KW | 1 | 1.5 | 2 | 3 | 4 | |
| Control Panel | Yes | Yes | Yes | Yes | Yes | Yes |
| Fuel tank capacity | Liters | 100 | 200 | 200 | 200 | 200 |
Optional Extra
Ultrasonic Level Sensor
